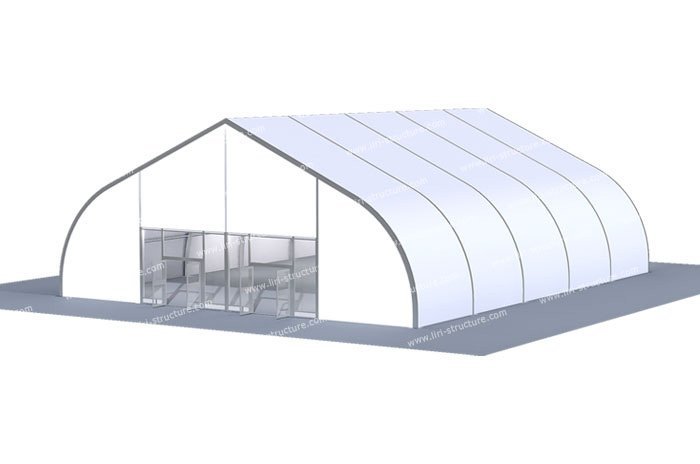

TFS Curved Roof Tent
Width: 15m - 25m

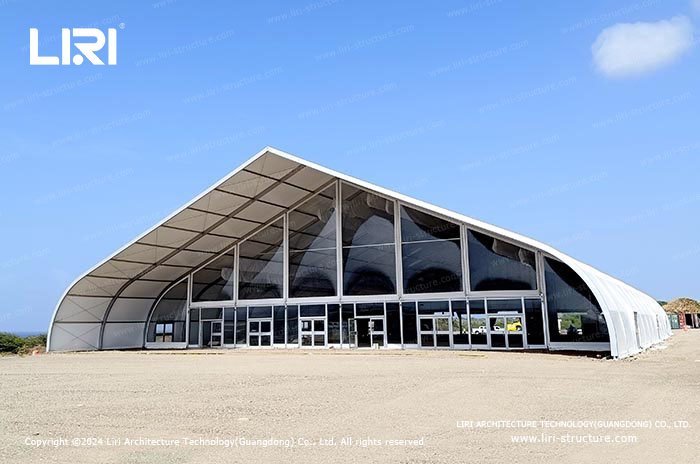

The TFS Roof Tent is one of the latest products of the Tent Series. We designed it. An increasing number of customers prefer this type of tent due to its unique and elegant cardioid shape.
The TFS Roof Tent is one of the latest products of the Tent Series. We designed it. An increasing number of customers prefer this type of tent due to its unique and elegant cardioid shape.

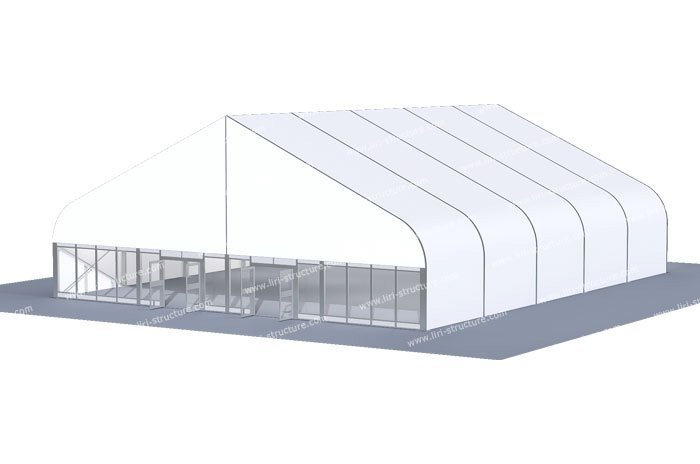

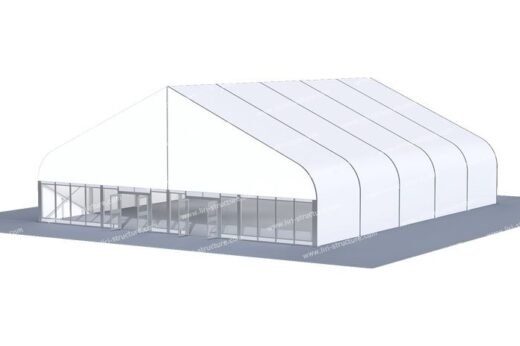

There are 3 types in the curved tent series. These include CBT (span from 15m to 25m, main profile size 204x120x4mm), CEBT ( span from 15m to 30m, main profile size 256x121x5mm), and CTH( span from 20m to 40m, main profile size 300x125x5/8mm).
The TFS curved roof tent series are modular structures. We can increase or decrease in the bay distance of 5m according to the clients’ requirement. The main frameworks (upright support and roof beam) are manufactured with high pressed extruded anodized aluminum (6061/T6) and the double-sided PVC roof covers use PVC-coated polyester textile. The flame retardance is based on the European standard DIN 4102B1, M2.
Large TFS Curved Roof Types
Colors:
-
TF 01 White (Opaque) 850g/m² RAL 9016
-
TF 02 White (Translucent) 650g/m² RAL 9016
-
TF 03 White (Varnish PVDF, Opaque) 850g/m² RAL 9016
-
TF 04 White Face-Back Black 750g/m² RAL 9016
-
TF 05 Transparent PVC 650g/m² RAL 0000
-
TF 06 Silver Face-Back White 850g/m² RAL 7045
-
TF 07 Beige (Opaque) 750g/m² RAL 1015
-
TF 08 Sand Yellow (Varnish Both Sides PVDF,Opaque) 750g/m² RAL 1002
-
TF 09 Yellow (Translucent) 650g/m² RAL 1021
-
TF 10 Blue (Opaque) 850g/m² RAL 5015
-
TF 11 Red (Opaque）850g/m² RAL 3031
-
TF 12 Army Green (Opaque）850g/m² RAL 6002
-
TF 13 Black 750g/m² RAL 9005
-
TF 14 Orange Face-Back White 850g/m² RAL 2009
-
TF 15 Sky Blue (Opaque) 850g/m² RAL 5012
The TFS curved roof tent design is very durable and strong and the wind loading is 100 kg/hr. It is convenient and easy to set up and tear down. It is easy to store because of its small volume. This tent has a wide range of applications for the aircraft hangar. Whether you want to construct a temporary or permanent tent both are an excellent choice. This type of structure is superior because of its fast installation, dismantling, and transportation and because of its strength and security. Due to the high beam aluminum alloy curve design and perfectly extended system, it enables the tent to be resistance to high wind and snow.
-
Upright Support Roof Beam
-
Gable Pole
-
Ridge Purlin Eave Purlin Gable Beam
-
Intermediate Purlin
-
Eave Tension Rail
TFS Curved Roof Tent Applications
Indoor Football Field Structures
This football field project with the design of the TFS curved structure
TFS Series Aircraft Hangar Tent
TFS series is designed for Aircraft Hangar Tent with the high arch roof
| Clear-span Width | Eave Height | Ridge Height | Bay Distance |
| 12 m / 39.37 feet | 3.87 m / 12.70 feet | 6.93 m / 22.74 feet | 5 m / 16.40 feet |
| 15 m / 49.21 feet | 3.87 m / 12.70 feet | 8.0 m / 26.25 feet | 5 m / 16.40 feet |
| 20 m / 65.62 feet | 3.87 m / 12.70 feet | 8.8 m / 28.87 feet | 5 m / 16.40 feet |
| 25 m / 82.02 feet | 3.87 m / 12.70 feet | 9.9 m / 32.48 feet | 5 m / 16.40 feet |
-

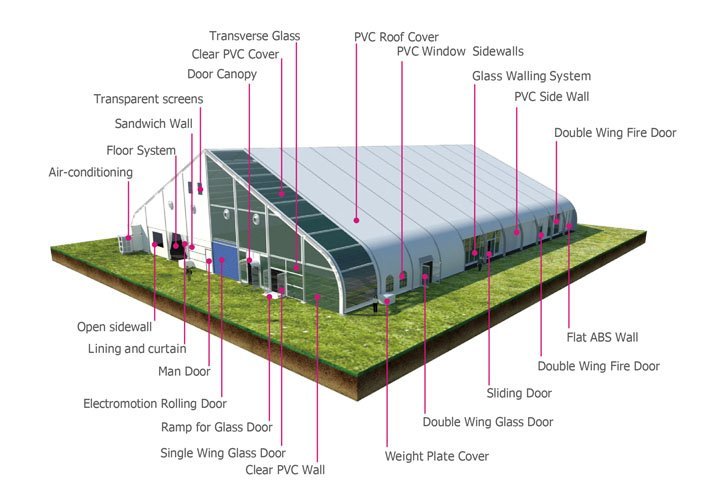

Tent Flooring
-
